End-to-end signal infrastructure components — engineered and manufactured in-house.
Planar Lightwave Circuit (PLC) splitters based on silica waveguide technology. Available in 1×N and 2×N configurations from 1×2 up to 1×128, with low insertion loss, low PDL and Telcordia/Verizon-grade reliability.
Packaging options include bare-fiber steel tubes, plastic boxes, LGX modules, 19″ rack mounts and customized enclosures — all built to Telcordia GR-1221 / GR-1209 requirements.
| Configuration | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| IL max — Grade P (dB) | 3.6 | 7.0 | 10.3 | 13.6 | 16.6 | 20.1 |
| IL max — Grade S (dB) | 4.3 | 7.4 | 10.7 | 13.9 | 17.2 | 21.5 |
| Uniformity max (dB) | 0.5 | 0.8 | 0.8 | 1.4 | 1.5 | 2.0 |
| PDL max (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss min (dB) | ≥ 55 | |||||
| Directivity min (dB) | ≥ 55 | |||||
Fused Biconical Taper (FBT) couplers for single-mode fiber. Available as 1×2 / 2×2 splitters or WDM/coupler combinations, with customizable coupling ratios from 1/99 to 50/50.
A cost-effective solution for CATV, PON, LAN and test-equipment applications where specific splitting ratios or dual-window performance are required.
| Coupling Ratio | 50/50 | 40/60 | 30/70 | 20/80 | 10/90 | 5/95 |
|---|---|---|---|---|---|---|
| Tap IL (dB) | ≤3.6 | ≤4.5 | ≤5.7 | ≤7.6 | ≤11.0 | ≤14.0 |
| Pass IL (dB) | ≤3.6 | ≤2.6 | ≤1.9 | ≤1.2 | ≤0.63 | ≤0.41 |
| Directivity (dB) | ≥ 55 | |||||

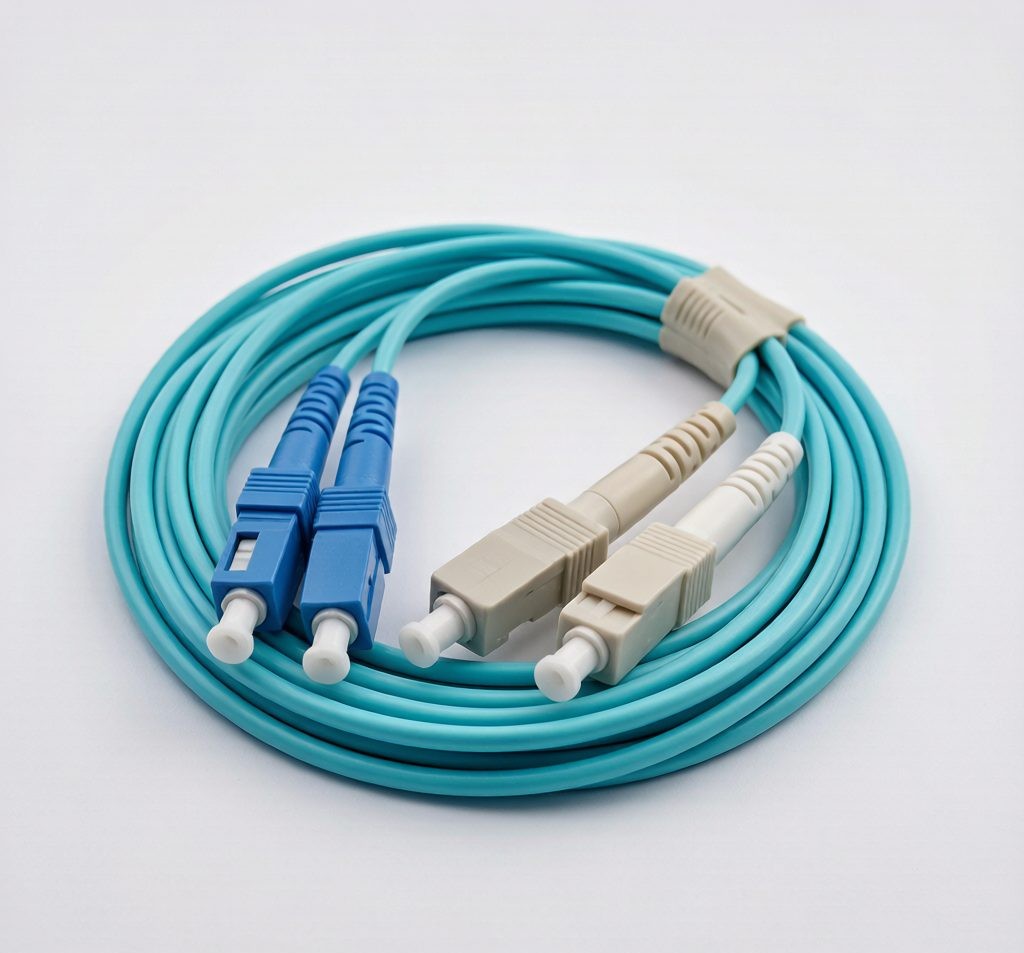

Single-mode and multimode patch cords and pigtails built to IEC 61300-3-34 / IEC 61300-3-35 / IEC 61754. Connector options cover FC, SC, LC, ST, MU, MPO/MTP and MTRJ in PC/UPC/APC polish.
Fiber types include G652D, G657A1/A2/B3, OM1/OM2/OM3/OM4. Used in long-haul, metro, access, CATV and data-center networks.
Zinc die-cast, nickel-plated indoor CATV splitters and directional taps for 5–1000 MHz HFC networks. Engineered for low insertion loss, high isolation and high return loss.
Available in 2/3/4/6/8-way splitter configurations and a full range of tap values, with F-type female 75 Ω connectors. See our full catalog for detailed insertion-loss and isolation tables.

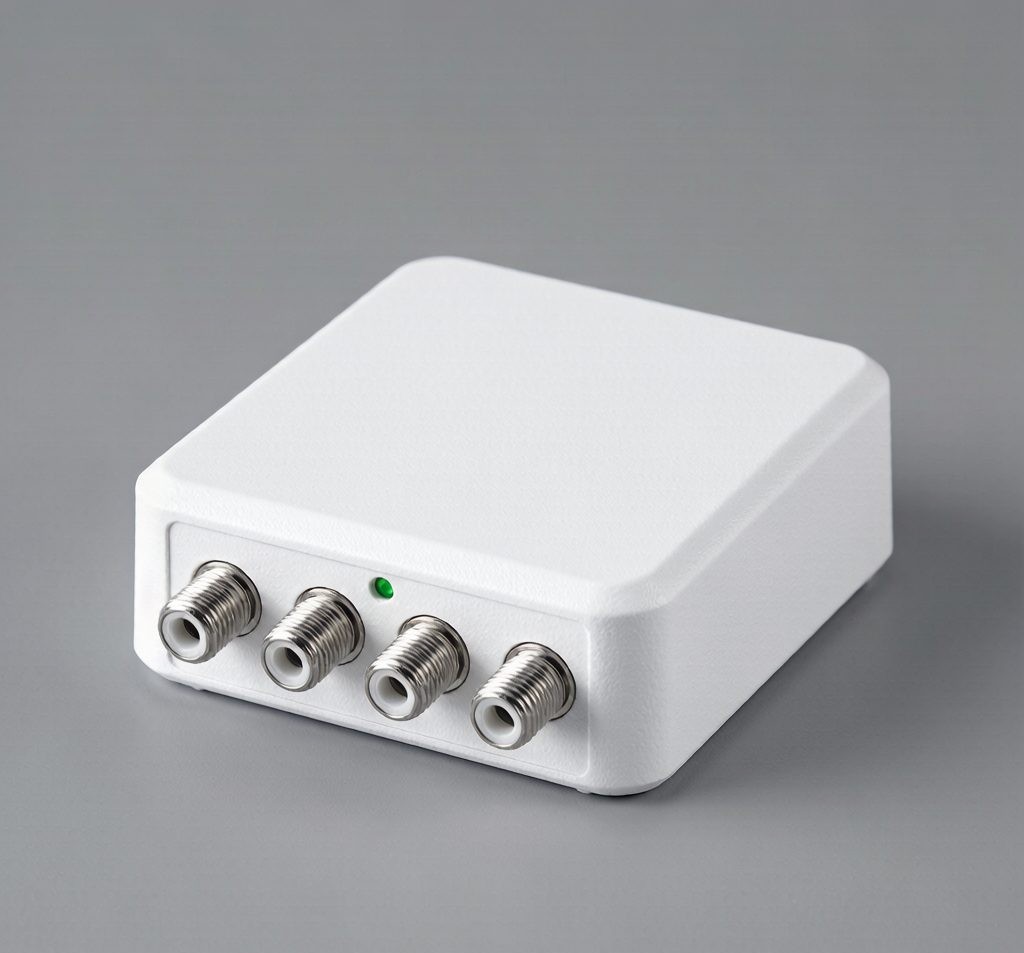

Wideband satellite multiswitch splitters covering 5–2500 MHz for SMATV, satellite IF and terrestrial TV distribution. Power-passing options support LNB and receiver powering.
Available in A/B/C/D/H/S-series 2/3/4/6/8-way configurations, with robust zinc-alloy housings and professional F-type 75 Ω ports.
A complete family of satellite TV passives: DiSEqC 1.0/2.0 switches, 2×1/3×1/4×1 multiswitches, TV/SAT mixers, 13/18 V & 0/22 KHz switches, wall sockets and satellite finders.
Designed for multi-subscriber satellite installations, MATV/SMATV systems and professional broadcast distribution.

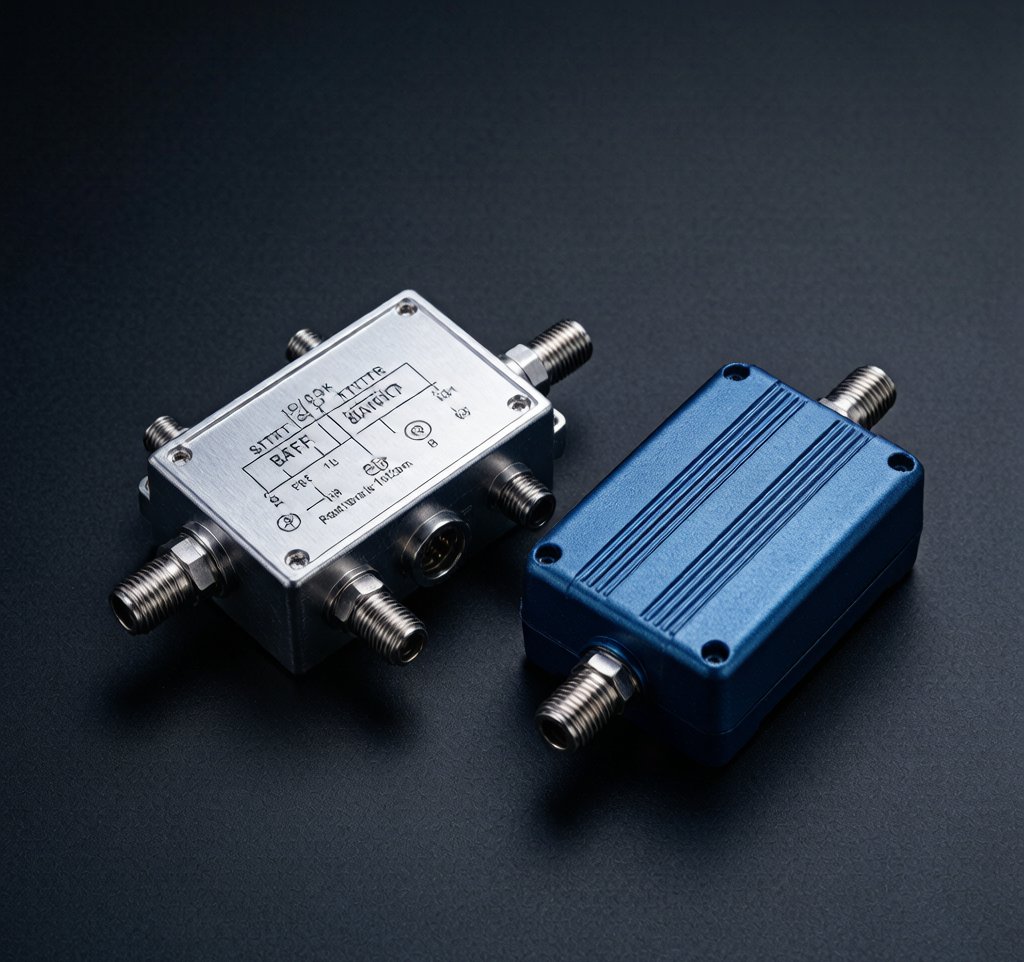

CATV line amplifiers and outdoor splitters/taps for HFC trunk and distribution networks. Hardened aluminum-alloy housings with powder coating, sealed against moisture and power surges.
Our outdoor taps and splitters meet SCTE IPS-SP-400 standards and withstand 1 kV power surges — built for years of reliable outside-plant service.
Beyond our standard catalog, Puneng designs and manufactures a wide range of RF, fiber-optic and CATV components for partners worldwide. If your project requires a custom splitter, amplifier, enclosure or cable assembly, our engineering team can take it from drawing to volume production.
We support private labeling, custom packaging, dedicated tooling and full electrical/mechanical validation. Share your specification and target volume — we will quote tooling, samples and production lead time within 48 hours.
